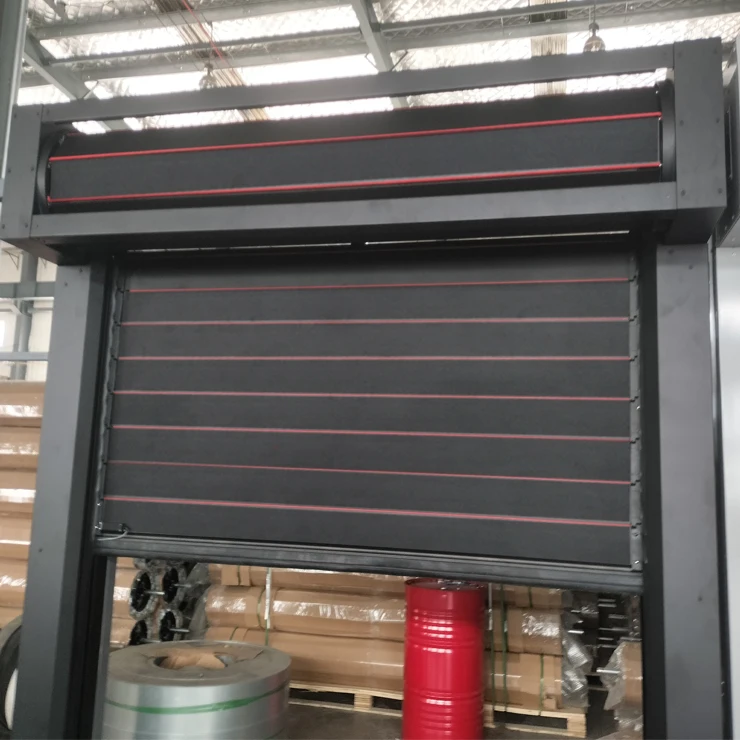

Factory Direct automatic Aluminum fast rapid rolling aluminum quick roll up rapid roll workshop High Speed Spiral door

Factory Direct automatic Aluminum fast rapid rolling aluminum quick roll up rapid roll workshop High Speed Spiral door

Related Products

Qingdao Norton Door Technology Co., Ltd. was established in 2 0 0 5 year, specializing in the design and production of overhead garage doors, rolling shutter doors, stacking doors, industrial sectional doors and high speed doors. The company has 2 production lines for various sectional door panels, 3 production lines for rolling shutter doors, 1 production line for high speed doors. It has obtained I S O 9 0 0 1 quality certification and its products have passed European C E certification. The factory adheres to strict quality control and continuously improves product quality.

Good quality products and solid technical support can be provided by the advanced production equipment and strong technical team. Products are exported to more than 40 countries, such as United States, Canada, Netherlands, Australia, United Arab Emirates. The company is widely recognized by customers all over the world, and its good quality products have won high praise from users. For doors in each series, there are different colors and styles available. O D M / O E M services are supplied.

Norton spraying equipment sprays paint at high speed onto the surface of the object to be coated, providing anti-corrosion,wear-resistant, and aesthetic properties. It can extend the service life of products.

Product Name	High Speed Aluminum Spiral Door
Material	Aluminum+PU foam insulation+organic glass window
Color	White, Dark Grey, Silver Grey, Red, Yellow
Panel thickness	40mm
Standard	ISO9001, CE
Opening Speed	1.2 to 2.5m/s, adjustable
Closing Speed	0.6m/s, adjustable
Wind resistance	3.5kPa, 120km/h
Inverter	Taiwan Shilin Brand
Motor Voltage	110V,60HZ,or 220V 50HZ, or 380V 50HZ
Motor Power Output	0.75KW,1.5KW,2.3KW and so on
Used	building industry, logistics

Good airtightness, heat preservation and noise prevention

Between the door panels, all sides are equipped with sealing strips, the door panels are filled with polyurethane foam material, heat insulation and noise prevention

Strong and durable, beautiful appearance

Aluminum alloy door is sturdy and durable, different colors are available; Can be equipped with aluminum transparant panels or windows.

Technical Drawing

Three lift styles

According to the door opening headroom, there are 3 lift styles optional.
Circular Spiral guide rail headroom: Min 0.85m for 3m height door. Min 1m for 5m height door
Oval Spiral guide rail headroom: Min 0.7m.

Red Color Panel

Red is our standard color

Yellow Color Panel

RAL1021 yellow color is popular

Silver Grey Color Panel

Silver Grey is our standard color

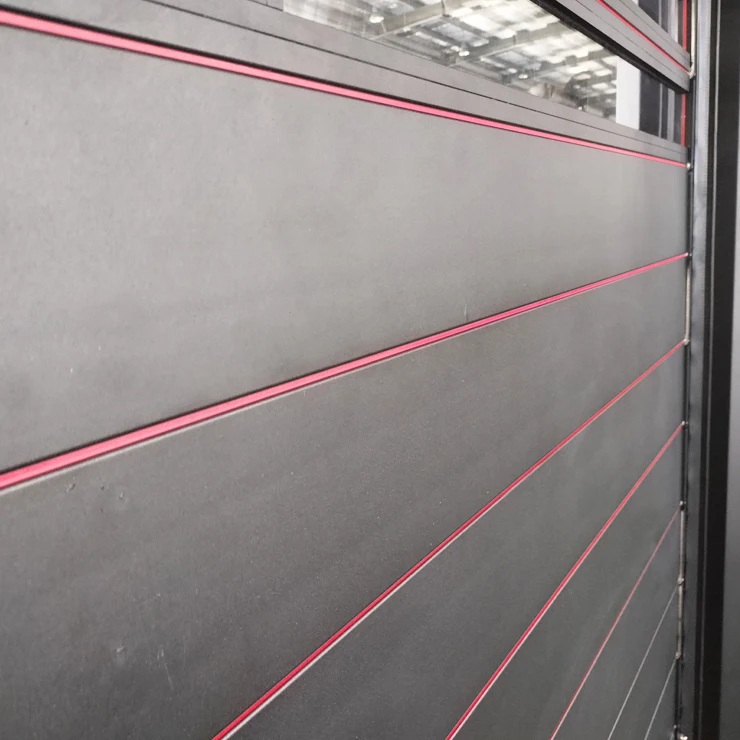

(1) Door Panel thickness is not less than 40mm.
(2)The surface is anodized and organic colored.
(3)The interior is filled with polyurethane (excluding CFC) foam.
(4)Adopt international advanced bridge insulation treatment.
(5)The hinge load-bearing design makes the curtain joints unstressed, the door panels are not in contact, and the flatness can be maintained after long-term use.

Guide Rail

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.


Oval Spiral guide rail

For headroom Min0.7m

Spiral Guide Rail

For headroom Min0.7m

The spiral circular non-contact track is used, and the panels are not connected to each other when the curtain is rolled, so the panel material will not be worn, deformed.The friction is reduced and the door runs fast, and has no noise.
The door run smoothly, fast and stable. It is suitable for high frequency operation.

Multiple opening methods

Multiple opening methods: geomagnetism, radar, mobile phone wifi, remote control, wall switch, emergency power failure to open the door, etc. Safety device Infrared, bottom side of airbag.

Emergency handle

turbine guide track&motor

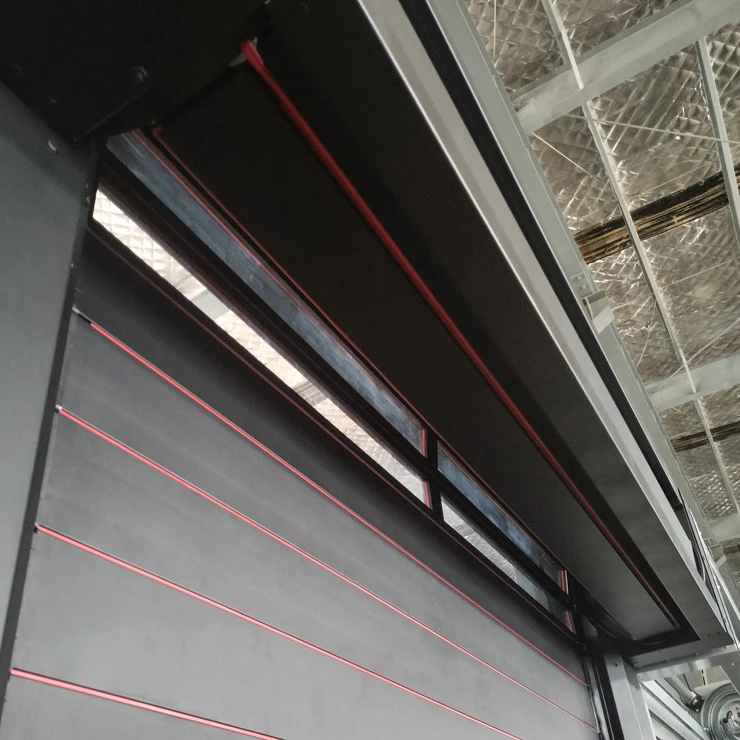

organic glass window

Good airtightness, heat preservation and noise preventionn

Between the door panels, all sides are equipped with sealing strips, the door panels are filled with polyurethane foam
material,heat insulation and noise prevention
